Stainless Steel Gratings

Stainless Steel Gratings in Saudi Arabia


Stainless Steel Gratings / SS Gratings

Silvertech Saudi offers Stainless Steel (INOX) grating that is great for places where rust or corrosion can be a problem. We use strong materials like SS 304, 304L, 316, or 316L Grade to make the grating. You can get it in either a regular finish or a shiny finish. The shiny finish looks nicer and is easier to keep clean. Whether you need it for a factory or a building, their Stainless Steel grating is tough and won’t get ruined by rust or corrosion i.e. Mill Finish or Electro Polished Finish.  Stainless Steel grating is made to fit each project’s needs. The size of the panels is usually the same as regular steel grating, depending on the chosen design.


Different Type of Stainless Steel Grating :

1. Top Notch Grating / Bar Grating

2. Pass Thru Grating

3. Press Lock Grating

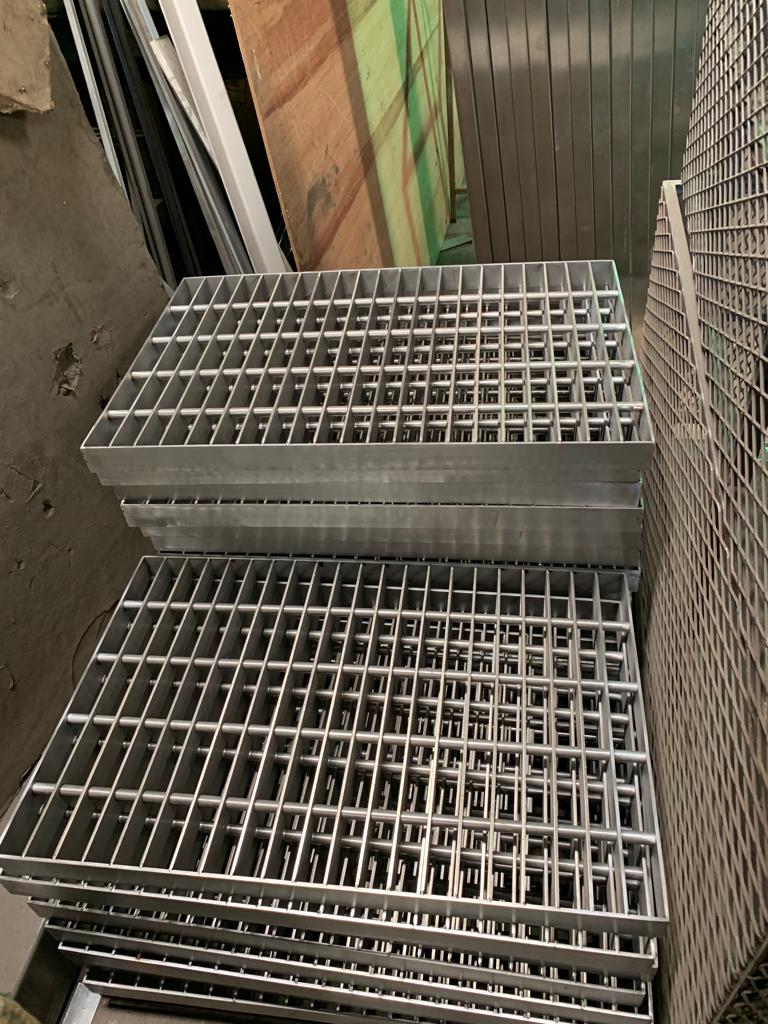

Top Notch Gratings / Bar Gratings

Silvertech Saudi Top Notch Gratings are built using Rectangular Flats and Round Bars. To create the grating, the round bars are placed on top of the grating using a manual punching method.

Specifications:

Load Bar Height20,25,30,40,50 upto 60mm
Load Bar Thickness3,4,5 & 6mm
Cross Bar6,8 & 10mm Round (or) 6,8 & 10mm Square Bar
Load Bar TypePlain
MaterialStainless Steel AISI 304/ 304 L/ 316/ 316 L Grade
FinishMill Finish/ Brush Finish/ Mirror Finish/ Electro Polish Finish

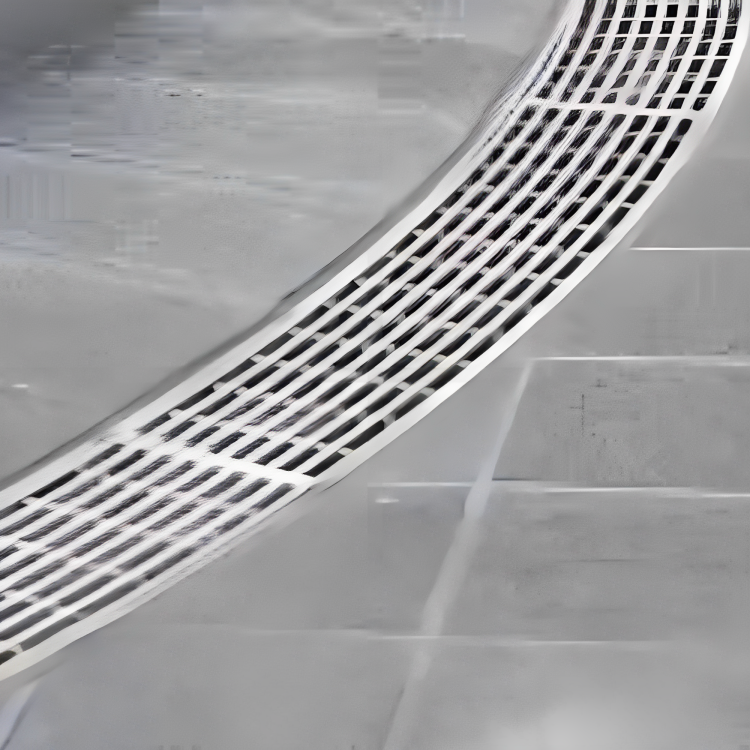

Pass Thru Gratings

The Silvertech Saudi Pass Thru Grating is built using flat bars and round bars. The grating has a round bar in the middle of the flat bar, and it is put there by punching holes in the flat bar and manually inserting the round bar into those holes.

Specifications:

Load Bar Height20,25,30,40,50 upto 60mm
Load Bar Thickness3,4,5 & 6mm
Cross Bar6,8 & 10mm Round Bar
Load Bar TypePlain (or) Serrated
MaterialStainless Steel AISI 304/ 304 L/ 316/ 316 L Grade
FinishMill Finish/ Brush Finish/ Mirror Finish/ Electro Polish Finish


Press Lock Gratings

Press Lock type of S.S. Gratings is made using flat load-bearing bars and flat transverse bars. To create them, the load-bearing bars are notched and then locked together with the cross bars using high pressure. This makes sure the gratings are strong enough for vehicles to pass over, especially in trenches. We can make these gratings using Stainless Steel and Mild Steel providing different choices for different uses.

Specifications:

Load Bar Height20,25,30,40,50 upto 60mm
Load Bar Thickness3,4,5 & 6mm
Cross Bar Thickness3,4,5 & 6mm
Load Bar TypePlain (or) Serrated
MaterialStainless Steel AISI 304/ 304 L/ 316/ 316 L Grade
FinishMill Finish/ Brush Finish/ Mirror Finish/ Electro Polish Finish


Applications:

  • Platform Walkways in Oil and Gas Sector
  • Petrochemical Industries
  • Civil Construction
  • Food Industries

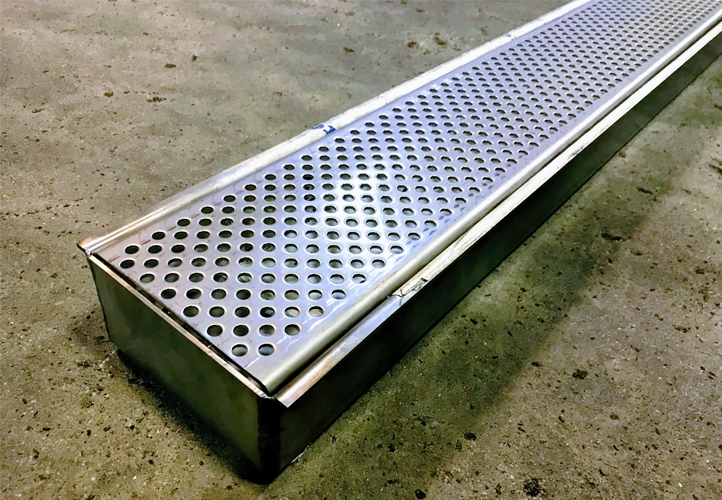

  • Trenches
  • Chemical Industries,
  • Industrial kitchens, etc

For orders or more information, you visit our factory in Riyadh, Saudi Arabia or call us on 00966 59 411 1875
