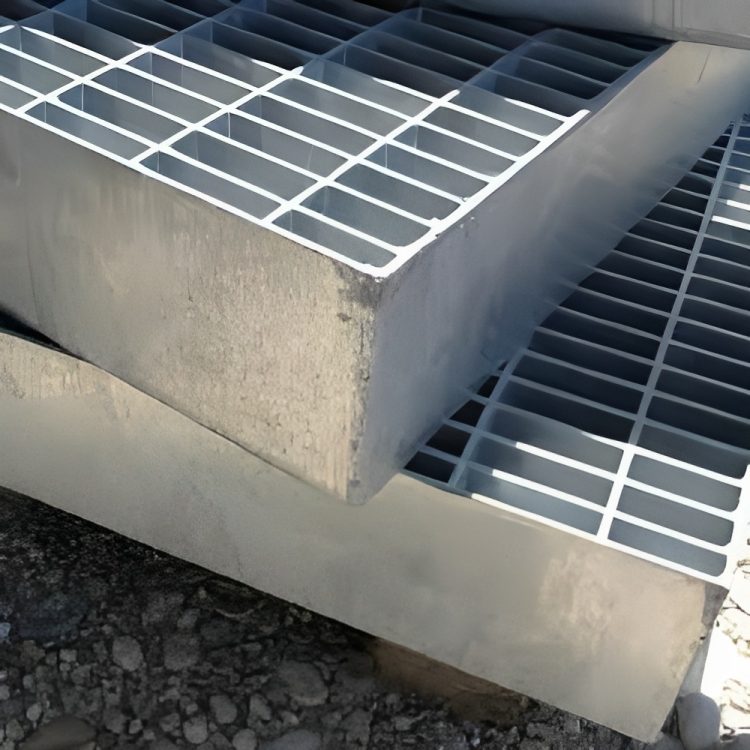

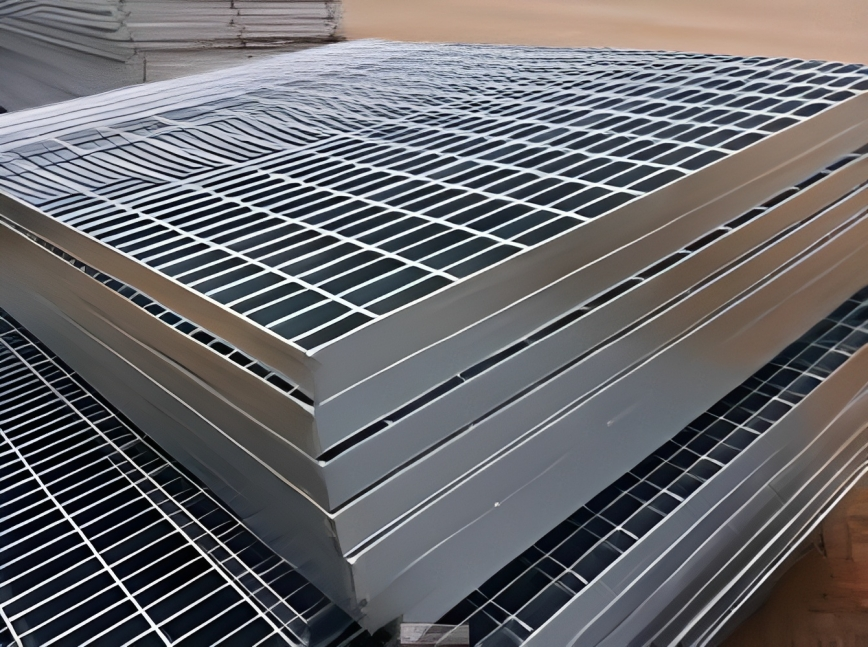

Manually Welded Heavy Duty Gratings

Manually welded heavy-duty gratings are designed to be very strong and handle heavy weights. These gratings come in different sizes and have spaces between the bars that can be adjusted to fit the needs of each place. Heavy-duty gratings are made to be durable and last a long time while keeping everything safe.

They are used in places like

  • Highways
  • Factory floors,
  • Docks
  • Airports, etc

where there are lots of vehicles and heavy objects.


For orders or more information, you visit our factory in Riyadh, Saudi Arabia or call us on 00966 59 411 1875

Engineers use load tables to help them choose the right size bars based on how much weight they can support. By using these tables, engineers can make sure the gratings can handle heavy loads without breaking.

Load Bar Depth35, 40, 45, 50, 60 upto 150 mm
Load Bar thickness5, 6, 8, 10 and 12mm
Cross barShall be Round Bars or Flat Bars or Square Bars to suit the application
Load Bar TypePlain or Serrated
FinishSelf Color or Hot Dip Galvanised as per ASTM A123. / BS.
MaterialASTM A36/ ASTM A1011. & BS EN 10025 S275JR
